The Normascope workflow

From a running UI to a report you can trust.

Normascope captures what your users would see, compares it with what you intended, and shows you the difference without asking you to guess.

npx norma-scope init
See every command →

One honest loop

01

Your UI

capture

02

Reference

design · baseline · URL

03

Normascope

align · compare · score

04

Your decision

fix · accept · investigate

Deterministic scoring first. Optional AI explanation second. Human judgment always.

Start with the question

What should this page be compared with?

Normascope is not tied to one kind of reference. Choose the source that matches the way your team works today.

01

A design

Compare your running UI with a design reference. Use this when the question is: does the build match what we intended?

02

An approved build

Approve a known-good browser capture, then compare future changes against it. This is visual regression testing without a design file.

03

Another environment

Compare a local or staging build with another reachable URL. Both pages are captured at the same dimensions before scoring.

The everyday loop

Four steps from setup to signal

You do the setup once. After that, the normal development loop is a capture, a comparison, and a report you can inspect before the change reaches users.

  1. 01npx norma-scope init

    Set up the project

    Choose what you want to compare and which pages or frames to track. Normascope records the workflow in your project so the next run is repeatable.

  2. 02npx norma-scope doctor

    Check the setup

    Before interpreting a diff, make sure the app, routes, references and capture dimensions are reachable and consistent.

  3. 03npx norma-scope check

    Capture and compare

    One command that runs capture and then compare: it photographs the configured pages, aligns the captures, scores them against the reference, and writes a fresh report. Run the two separately any time you want only one of them.

  4. 04open the report

    Decide what changed

    Review the side-by-side images, aligned score, diff overlay and regions worth looking at. A difference is evidence; you decide whether it was intended.

The honest number

A section that moved is not a section that broke

This is the difference between a tool you trust and one you mute. Switch between the two readings — same page, same run, same pixels.

5.63%reported wrong
shift

A section got taller, so everything below it shifted down. A straight pixel comparison scores every one of those rows as different, and reports 5.63% — which reads like the page is broken.

Both numbers are reported, always. A wide gap between them is itself the signal: something moved rather than something broke.

The actual runNorma — Product Page · 1440×1000 · 2026-07-31

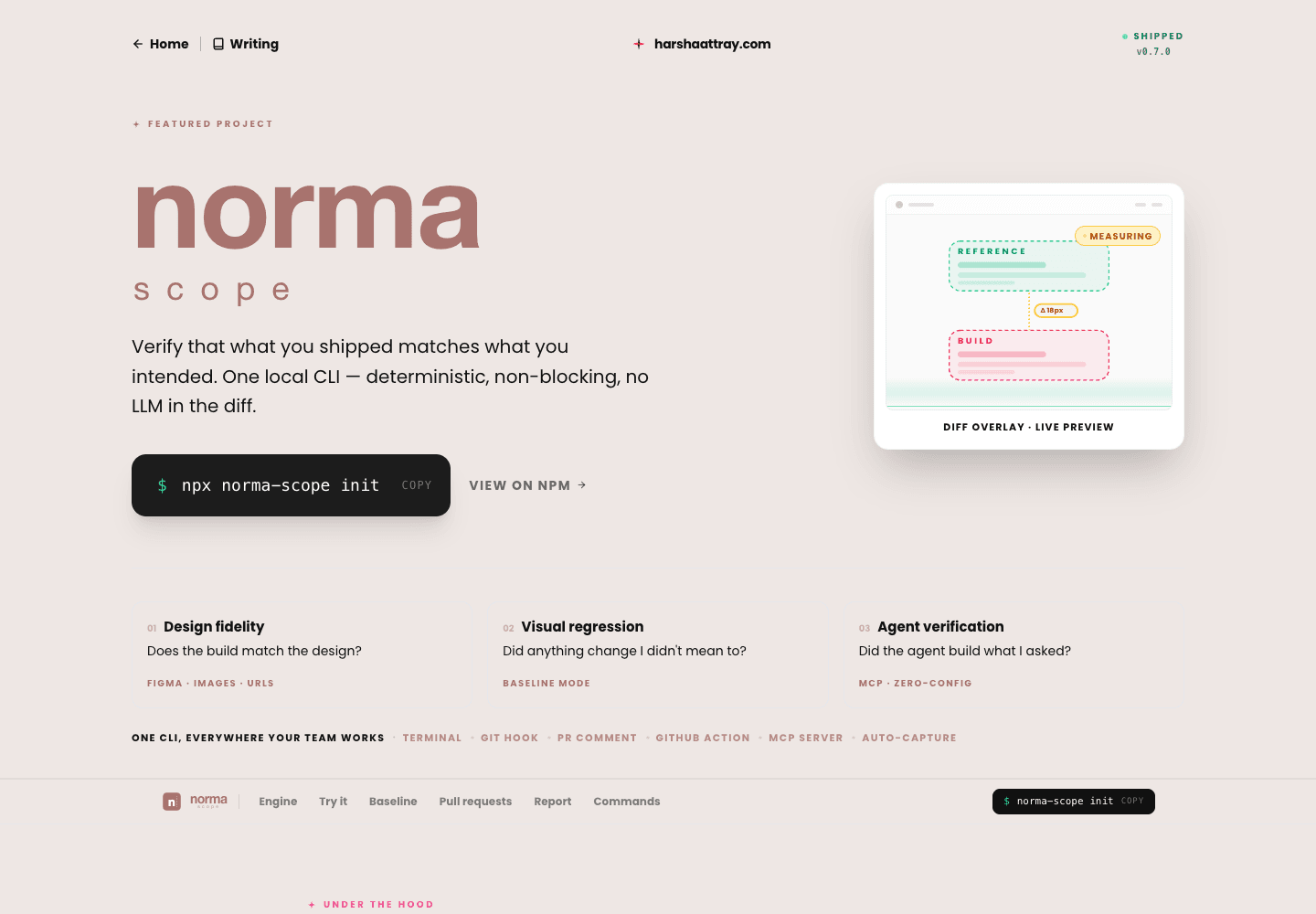

Norma — Product Page — Approved baseline
Approved baseline

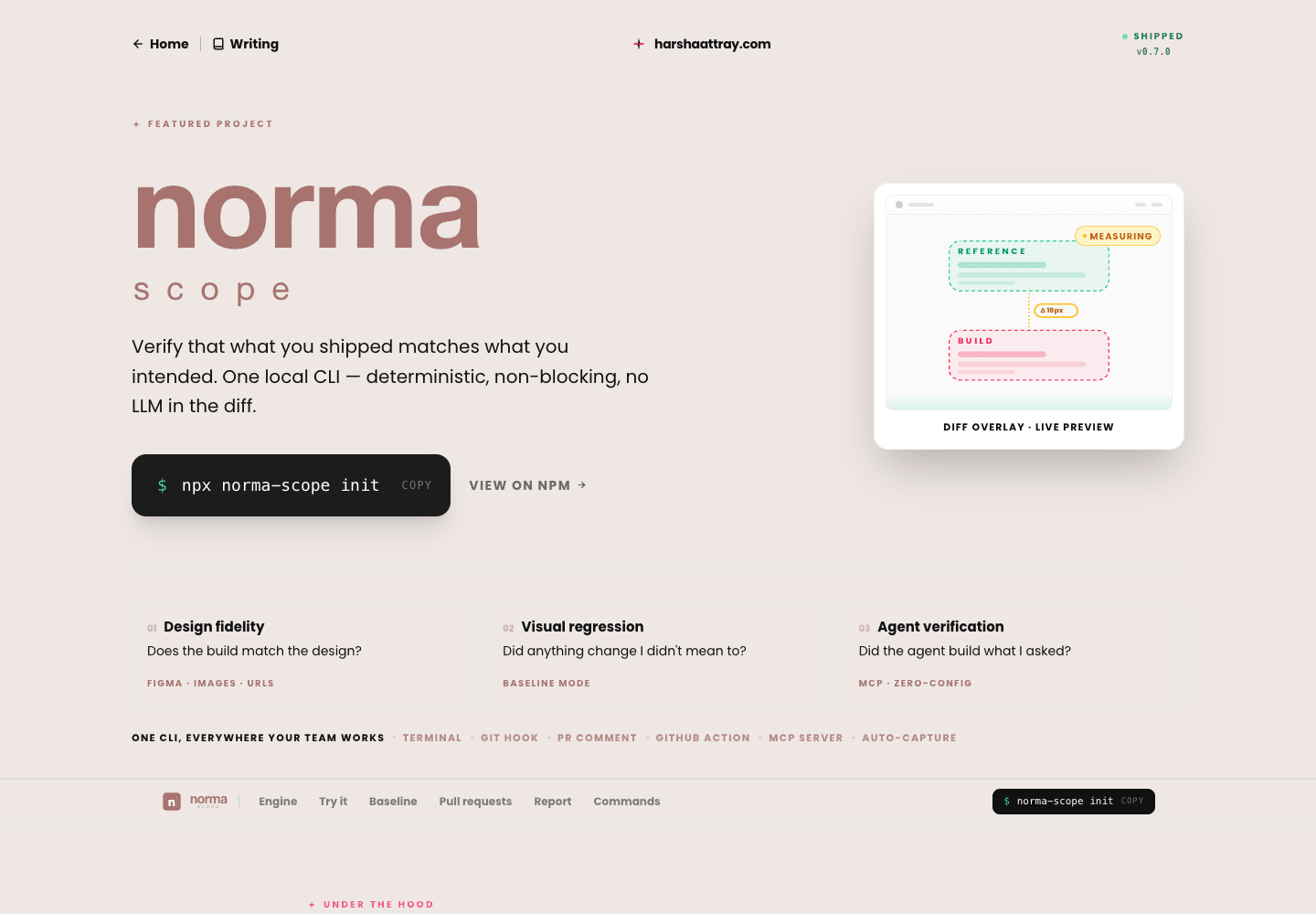

Norma — Product Page — This build
This build

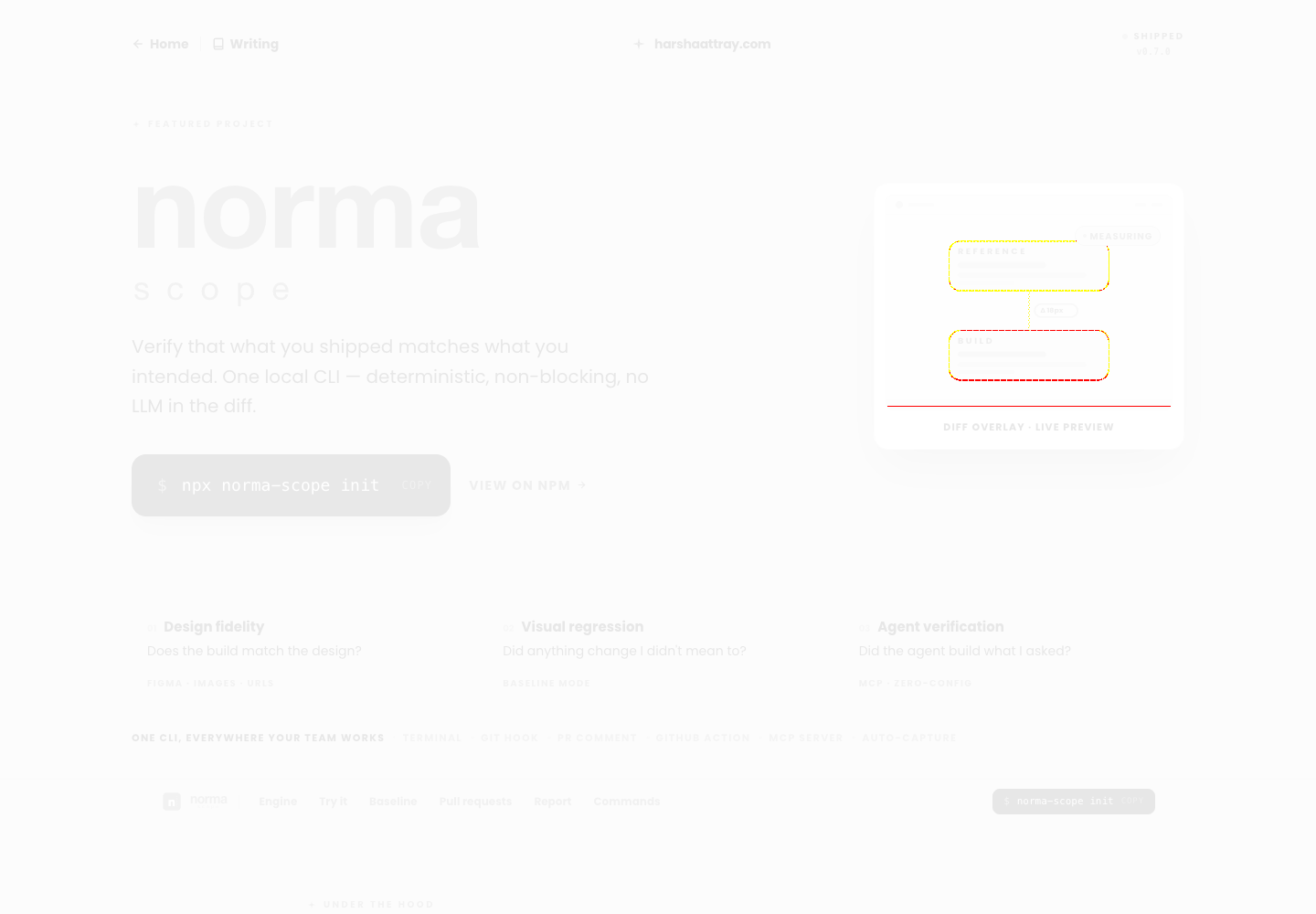

Norma — Product Page — Diff overlay
Diff overlay
Aligned
0.26%
Unaligned
5.63%
SSIM
98.7
Drifted sections
2
What the report does

It separates movement from breakage.

A page can look very different because a section moved, even when the elements inside it are still correct. Normascope aligns comparable bands before it scores the real mismatch.

That gives you two useful signals: the unaligned number shows how much the page moved; the aligned number shows how much content genuinely differs.

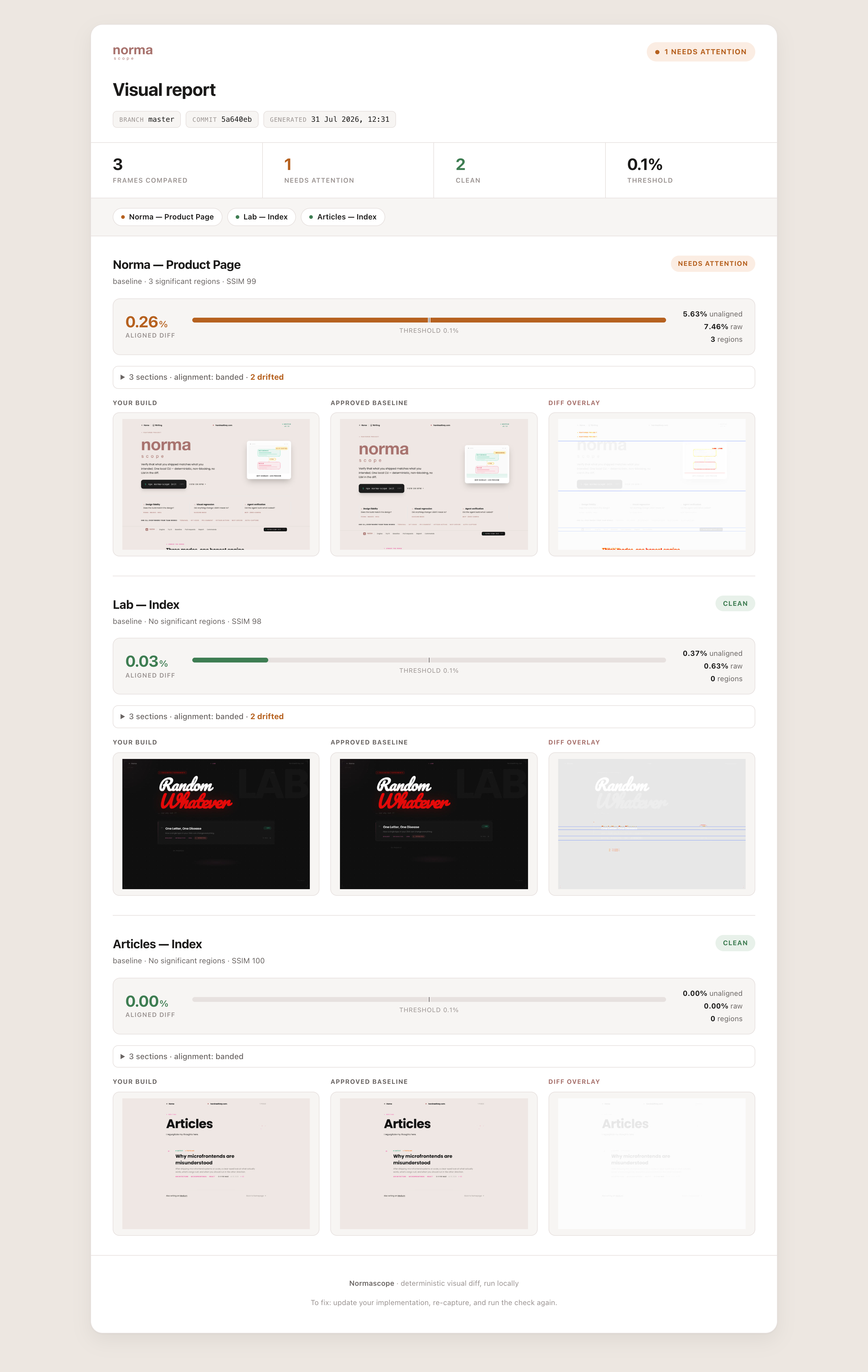

Normascope report overview showing frames, scores and clean versus flagged results
The report gives every frame a result, a score and a reason to look closer.

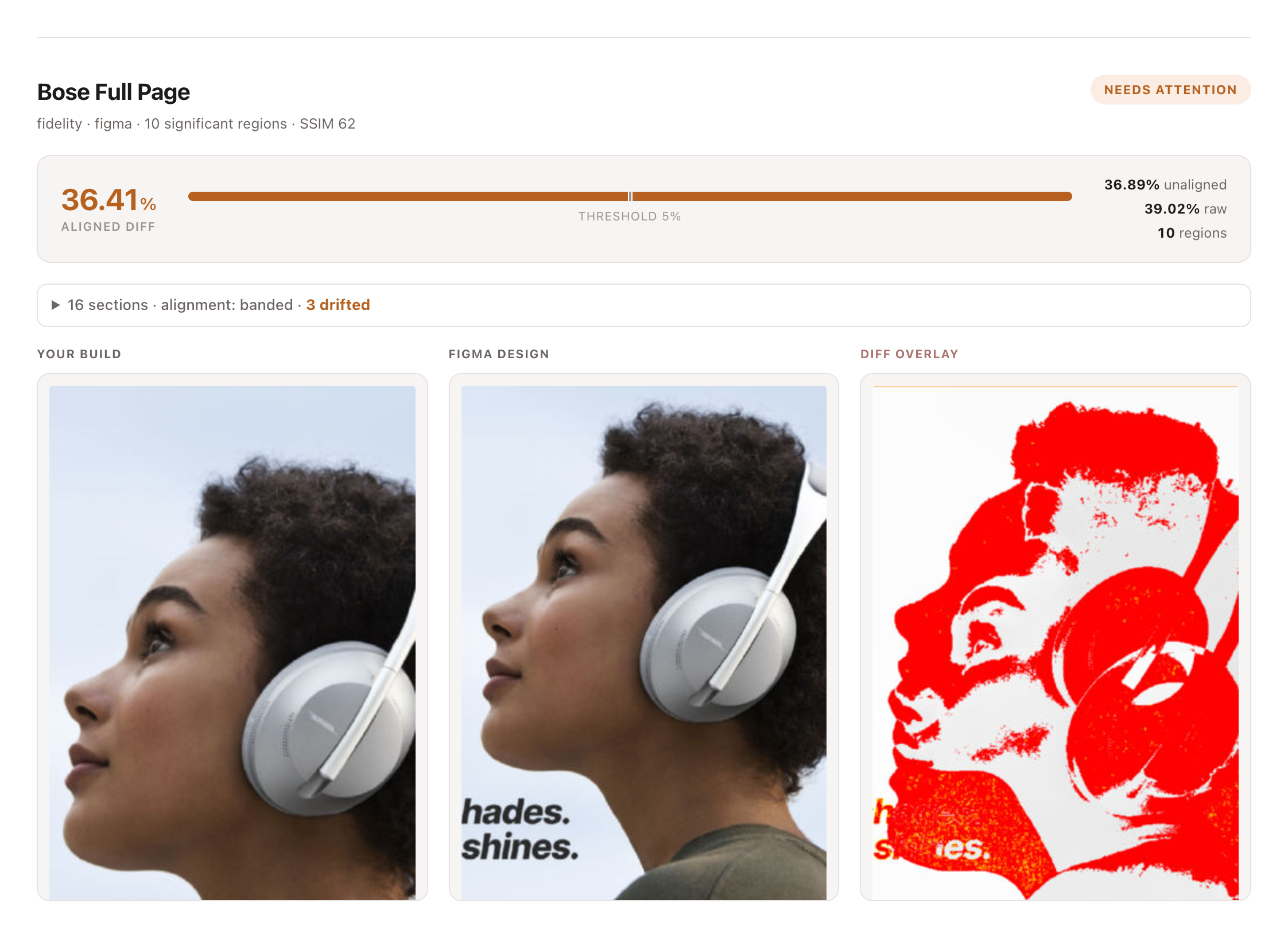

Normascope frame report showing reference, build and diff views
For a flagged frame, move from the number to the exact region that changed.
When something differs

The report tells you where to look.

  1. 1

    Look at the overlay. See the changed pixels in context, not as an isolated percentage.

  2. 2

    Check the region. Significant regions group nearby changes into places worth inspecting.

  3. 3

    Decide what it means. Accept an intentional change, fix a regression, or investigate the capture.

Learn how to read the report →
Your call, not ours

One setting decides what counts as flagged

A frame is flagged when its aligned difference is above your threshold. Drag it and watch the same three real frames change their minds — at 0.1% one is flagged, at 1% none are.

0.1%this run's setting

1 of 3 flagged · Product page

0%1%5%
  • norma-product.png0.26%
  • lab-index.png0.03%
  • articles-index.png0.00%
{ "threshold": 0.1 }

Flagged means “look at this”, not “build failed” — nothing turns red without --strict.

Flagged means “look at this”, not “fail”. Nothing breaks a build unless you pass --strict.

Optional, never in charge

AI can suggest a cause. It never decides the result.

Once you have a comparison, you can ask for an explanation of a flagged frame. It gives hypotheses to verify; the deterministic visual score remains the source of truth, and no explanation can change it or fail a build.

There are two routes, and you say which one. Having a key for either is never what decides where your evidence goes or who pays.

AI explanations are guidance, not instructions or guarantees. They may be inaccurate or incomplete. Use, edit, ignore, or discard them as you choose — whether to act is your decision alone. Normascope does not automatically apply them or decide pass/fail, and is not responsible for outcomes from decisions made using them.

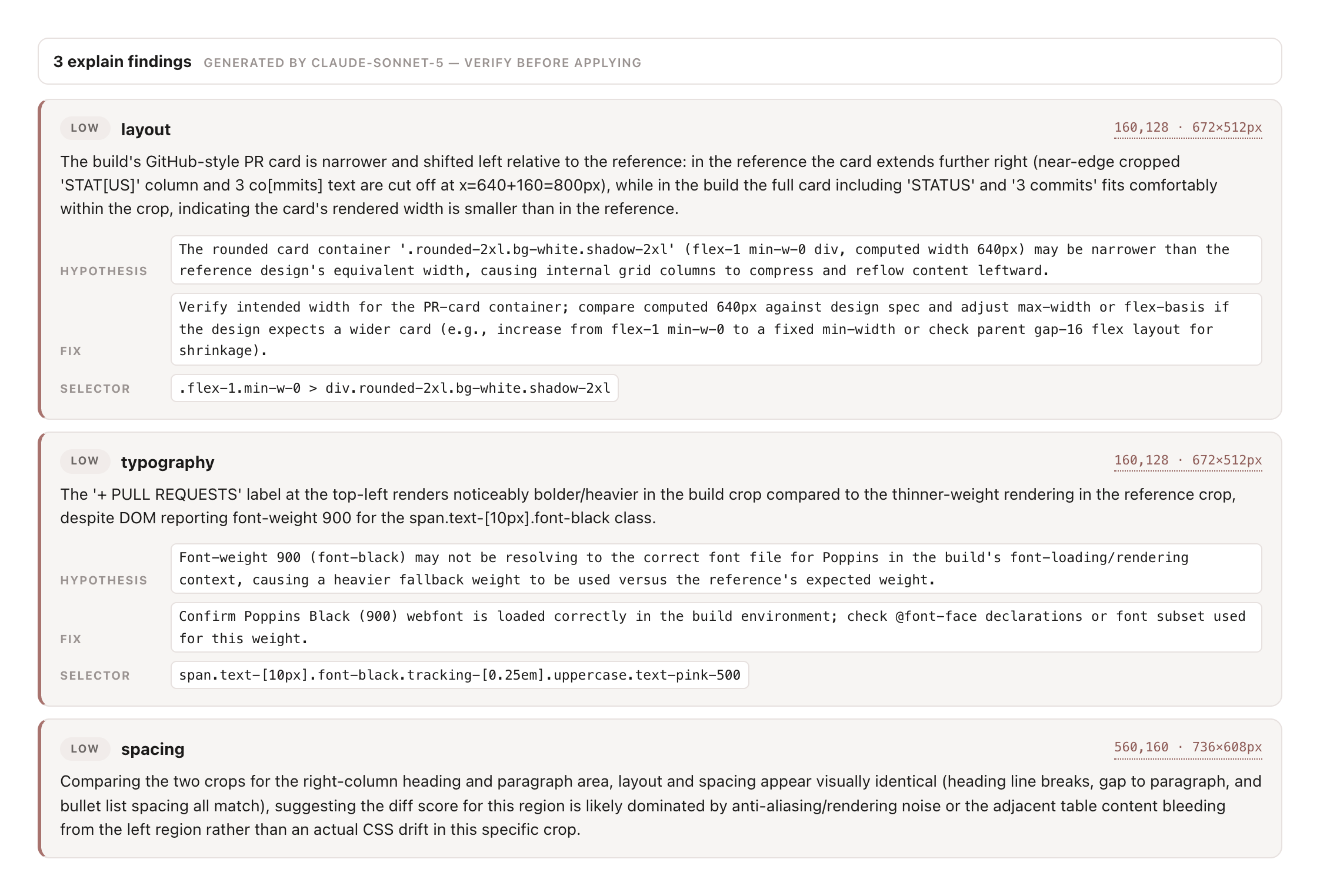

The local Normascope HTML report showing three explain findings from a run on the developer's own Anthropic key. Each finding has a category, a plain-language observation, a hypothesis, a suggested fix, and a CSS selector taken from the DOM captured alongside the screenshot.
The local report, from explain --local. The selector comes from the DOM this route is given — a hosted Cloud finding has no such row.

Stay local

npx norma-scope explain --local [frame]

Your own Anthropic key, on your own bill

  • Diff crops, the DOM context captured alongside the screenshot, and any source excerpts you opted into.
  • The outbound text is scanned for credentials first. A hit blocks the analysis and names the file rather than silently redacting it.
  • Because this route is given your DOM and your code, its findings can name a CSS selector and a file.

“Local” means nothing goes to Normascope. Your evidence still reaches your own model provider, under your own agreement with them.

Use Cloud

npx norma-scope cloud publish --explain

Cloud credits you bought, on an organization plan

  • The crops your comparison already found, the deterministic measurements, and the frame's history across your previous runs.
  • History is the part a local run cannot have: how often this screen has drifted, and which commit it started at.
  • Cloud is never given your DOM, your stylesheets or your source, so a hosted finding never names a selector or a file.

Publishing is included; analysing is opt-in and spends credits. A run uploaded as metrics has no images, so it cannot be explained — Cloud refuses it before reserving anything.

The other optional branch

Sending a run somewhere it outlives your laptop

Everything above happens on your machine and produces a file. Publishing is a separate command you type — compare, check and the pre-commit hook never send anything, and cloud publish never captures or compares.

  1. 01npx norma-scope cloud validate

    Checked here, not there

    Says on your own machine what Cloud would refuse later — a screen with no permanent name, a missing project id. It makes no network request at all.

  2. 02npx norma-scope cloud publish

    Send the completed run

    Publishes what the comparison already produced, at the disclosure level you configured: off, metrics, review or full. It writes a receipt locally so your PR comment can mention the hosted run.

  3. 03npx norma-scope cloud publish --explain

    Optional, and it spends credits

    Asks Cloud to analyse the flagged frames using crops, measurements and the frame's history. Opt-in every time — holding a Cloud key never starts spending.

Normascopenormascope

Start with one page.

You do not need a perfect test suite or a new platform. Point Normascope at one page your team cares about, run the loop, and learn what a trustworthy visual signal feels like.

npx norma-scope init
Normascope Cloudnormascopecloud

When the report needs to outlive your laptop.

Normascope Cloud adds shared links, per-page history and trends when your team is ready for them.

See what it adds
User guide

Need the hand-holding version?

Follow the commands, examples and troubleshooting steps from first setup to CI.

Open the user guide →
